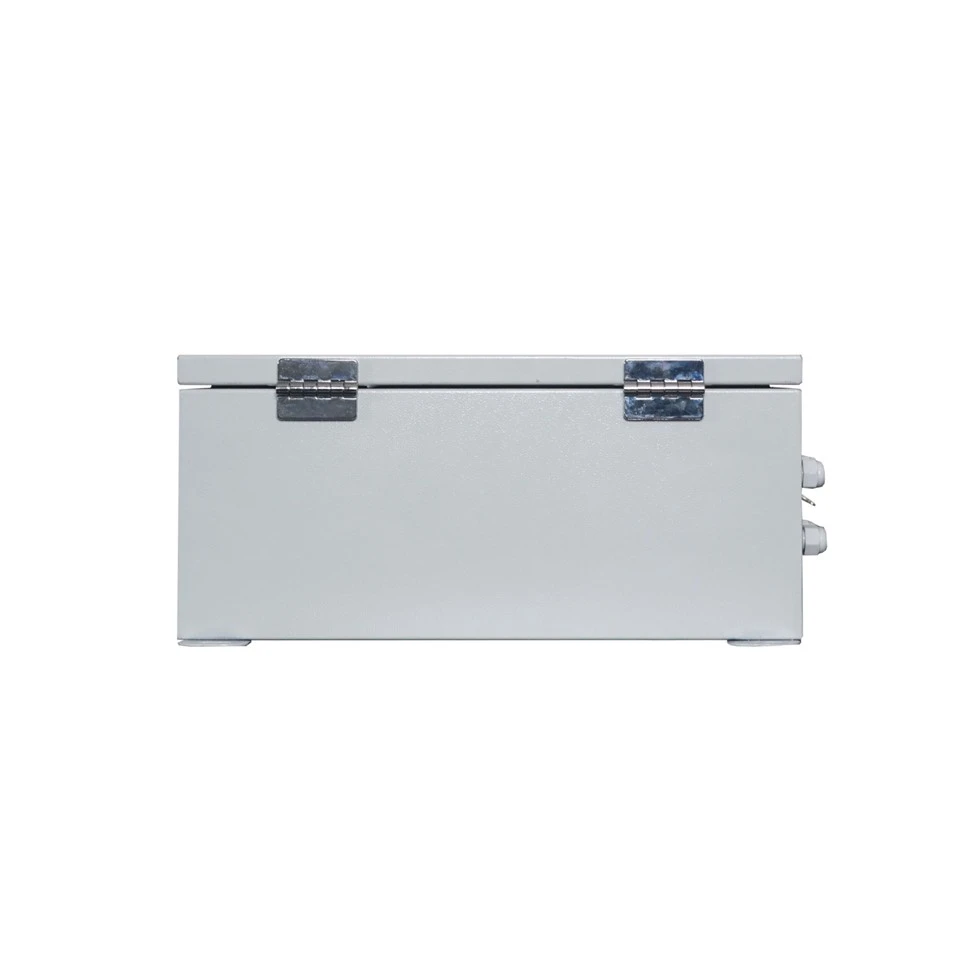

Photovoltaic DC Collector Box

DC Combiner Box Introduction

Dc bus box is the key component of solar power generation system. It connects individual solar modules (known as strings) together. As a central hub, the main function of the DC busbar is to collect the direct current (DC) generated by the solar panels, combine these currents into larger flows, and route them to the inverter. By doing so, it simplifies wiring by reducing the number of individual wires to the inverter, which in turn minimizes voltage drop and allows longer wires to run. In addition, the DC bus provides a degree of protection to the system by including features such as fuses or circuit breakers that interrupt the current in the event of a failure, thereby preventing damage to the solar panels and inverters.

Product Functionality

The DC combiner box typically contains a variety of protective devices, such as circuit breakers, surge protectors, and bypass diodes. These components ensure that the system remains safe and functional even during unfavorable weather conditions or if one or more of the solar panels become shaded or damaged. Circuit breakers provide rapid shutoff in case of overcurrent situations, while surge protectors guard against sudden spikes in voltage that could otherwise harm sensitive electronic components. Bypass diodes allow for continued operation of partially shaded panels by rerouting the unshaded portion of the current around the shaded cell.

Applicable Scenarios

DC combiner boxes are essential in both residential and commercial solar installations, particularly in scenarios where space constraints require minimizing the footprint of the solar array's wiring infrastructure. They are suitable for applications ranging from small rooftop systems to large-scale ground-mounted arrays. By consolidating the wiring and providing additional layers of protection, DC combiner boxes contribute to the longevity and efficiency of the solar power system.

In summary, DC combiner boxes play a vital role in optimizing the performance and ensuring the safety of solar power systems by effectively managing the flow of DC electricity from the solar panels to the inverter.
Specifications

FAQ
1. Can it be customized?
In addition to the key core components, the rest such as box specifications and logo can be customized

2. How waterproof is it?
Protection grade IP65, strong protection effect

3.Can I request to use the designated transport company?
Of course you can
