PV Combiner Box Design Balancing Cost, Efficiency, And Reliability

Definition and Structure of the PV Combiner Box

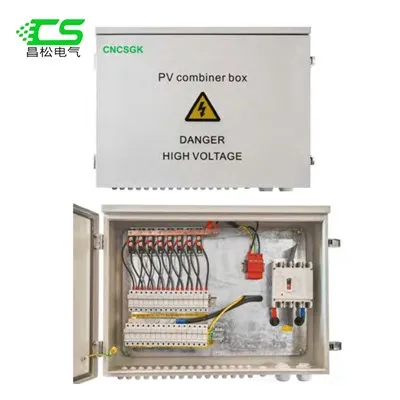

The PV combiner box is a pivotal component in solar photovoltaic power systems, designed to aggregate the direct current (DC) energy harvested from multiple photovoltaic modules. Its primary function is to consolidate this DC energy before it is conveyed to the inverter for conversion into alternating current (AC), which can then be integrated into the electrical grid or used for on-site consumption. Typically, a PV combiner box includes essential components such as DC switches, busbars for current distribution, protective fuses, metering devices for monitoring energy production, communication modules for data transmission, and a robust enclosure to house and protect these elements from environmental factors.

Applications and Functions of the PV Combiner Box

Within the operational framework of photovoltaic power plants, the PV combiner box plays a multifaceted role, contributing significantly to enhanced efficiency and reliability. Its capabilities encompass frequency conversion control, intelligent monitoring, and fault diagnosis, all of which work synergistically to optimize the performance and longevity of the photovoltaic system. Here are the key applications of a PV combiner box:

Power Optimization through Frequency Conversion Control

The combiner box employs sophisticated frequency conversion control mechanisms to regulate voltage and current, enabling maximum power point tracking (MPPT). This ensures that the solar photovoltaic modules are operating at their peak efficiency, maximizing the power output of the solar array.

Real-Time Monitoring for Enhanced Performance

Integrated with advanced monitoring systems, the PV combiner box offers real-time surveillance of critical parameters such as voltage, current, and power output from the photovoltaic modules. It also monitors the internal circuitry and components for signs of wear, damage, or malfunction. This proactive monitoring facilitates prompt identification and rectification of issues, minimizing downtime and maximizing system uptime.

Automated Fault Diagnosis for Reliability

Equipped with diagnostic capabilities, the PV combiner box can autonomously assess the health of internal components, including fuses, relays, and switches. Upon detecting a fault, it triggers an alarm to alert maintenance personnel, allowing for swift corrective action and preventing potential system failures.

These functions collectively ensure that the PV combiner box not only serves as a central hub for electrical distribution but also as a guardian of system integrity, contributing to the overall efficiency and operational reliability of photovoltaic installations.

Specifications

FAQ
1. What is the applicable altitude?
Altitude 2000m

2. What is the maximum continuous operating voltage?
The maximum continuous operating voltage is 1500V

3.Can I customize the logo or color of the product?
Yes, we can accept customization
