Hey there! As a supplier of 63 amp MCCBs, I often get asked about the difference between a 63 amp MCCB and a fuse. So, I thought I'd take a few minutes to break it down for you.
First off, let's talk about what an MCCB is. MCCB stands for Molded Case Circuit Breaker. It's a type of electrical protection device that's designed to protect electrical circuits from overcurrent, short - circuit, and other electrical faults. A 63 amp MCCB, as the name suggests, is rated to handle a maximum current of 63 amps. You can check out more about AC MCCB breaker circuits Ac Mccb Breaker Circuit.
On the other hand, a fuse is also an electrical safety device. It consists of a metal wire or strip that melts when too much current flows through it, thereby interrupting the circuit and preventing damage to the electrical equipment.
1. Operating Principle
The operating principle of an MCCB is quite different from that of a fuse. An MCCB uses a combination of thermal and magnetic trip elements. The thermal element responds to long - term overcurrents. When the current exceeds the rated value for an extended period, the heat generated causes a bimetallic strip to bend. This bending action trips the breaker, opening the circuit.
The magnetic element, on the other hand, is designed to respond to short - circuit currents. When a large, instantaneous current flows through the MCCB, a magnetic field is generated. This magnetic field causes a plunger or an armature to move, which then trips the breaker.
In contrast, a fuse works on the simple principle of melting a conductor. When the current passing through the fuse exceeds its rated value, the heat generated is sufficient to melt the fuse wire. Once the wire melts, the circuit is broken, and the flow of current stops.
2. Reusability
One of the major differences between a 63 amp MCCB and a fuse is reusability. An MCCB is a reusable device. Once it has tripped due to an overcurrent or short - circuit, you can simply reset it after you've identified and fixed the problem. This makes it very convenient, especially in industrial and commercial applications where downtime needs to be minimized.
A fuse, however, is a one - time use device. Once the fuse wire melts, you have to replace the entire fuse. This can be a hassle, especially if you don't have a spare fuse on hand. It also adds to the long - term cost, as you need to keep buying new fuses.
3. Response Time
The response time of an MCCB and a fuse also varies. An MCCB can be designed to have different tripping characteristics. For short - circuit currents, the magnetic trip element in an MCCB can trip the breaker in a matter of milliseconds. For long - term overcurrents, the thermal element may take a few seconds to a few minutes to trip, depending on the magnitude of the overcurrent.
Fuses, on the other hand, generally have a faster response time for short - circuit currents. The fuse wire can melt almost instantaneously when a large short - circuit current flows through it. However, for long - term overcurrents, the response time of a fuse can be similar to that of an MCCB.
4. Current - Limiting Ability
Both 63 amp MCCBs and fuses have current - limiting capabilities, but they differ in how they achieve this. An MCCB can limit the let - through current during a short - circuit event. When the magnetic trip element senses a short - circuit, it trips the breaker quickly, reducing the amount of current that can flow through the circuit.
Fuses are excellent current - limiting devices. They can reduce the peak short - circuit current to a fraction of what it would be without the fuse. This is because the fuse wire melts very quickly during a short - circuit, effectively limiting the amount of current that can flow through the circuit.
5. Application Flexibility
MCCBs offer more application flexibility compared to fuses. You can adjust the tripping settings of an MCCB according to the specific requirements of the electrical circuit. For example, you can set the thermal and magnetic trip thresholds to suit different load conditions. This makes MCCBs suitable for a wide range of applications, from small residential circuits to large industrial installations.
Fuses, on the other hand, have fixed ratings. Once you install a fuse with a certain rating, you can't change its characteristics easily. You need to replace the fuse with a different rated one if you want to change the protection level.
6. Cost Considerations
When it comes to cost, the initial cost of a 63 amp MCCB is generally higher than that of a fuse. However, when you consider the long - term cost, an MCCB can be more cost - effective. Since an MCCB is reusable, you don't have to keep buying new devices every time there's an overcurrent or short - circuit. With fuses, you need to constantly replace them, which can add up over time.
7. Size and Installation
In terms of size, 63 amp MCCBs are usually larger than fuses. This is because they contain more complex internal components such as the thermal and magnetic trip elements, as well as the mechanical parts for tripping and resetting.
Installation of an MCCB can be a bit more involved compared to a fuse. An MCCB needs to be properly mounted in a suitable enclosure, and the wiring needs to be connected correctly. Fuses, on the other hand, are relatively easy to install. They can be simply inserted into a fuse holder.
8. Monitoring and Control
MCCBs can be equipped with additional features for monitoring and control. Some MCCBs can be connected to a control system, allowing you to remotely monitor the status of the breaker, such as whether it's tripped or not. You can also remotely reset the breaker in some cases.
Fuses don't offer such monitoring and control capabilities. Once the fuse has blown, you have to physically check it to confirm the problem.
9. Safety
Both 63 amp MCCBs and fuses are designed to enhance electrical safety. However, MCCBs offer some additional safety features. For example, they have a visible indication of the tripped state. You can easily tell whether the MCCB has tripped just by looking at its position.
Fuses, on the other hand, may not always provide a clear indication of whether they have blown, especially in some enclosed fuse holders. This can make it difficult to quickly identify and fix the problem.
Conclusion
In conclusion, while both 63 amp MCCBs and fuses are used for electrical protection, they have significant differences in terms of operating principle, reusability, response time, current - limiting ability, application flexibility, cost, size, installation, monitoring, and safety.
If you're looking for a reusable, flexible, and easy - to - monitor protection device, a 63 amp MCCB might be the right choice for you. If you need a simple, fast - acting, and low - cost solution for short - term protection, a fuse could be a better option.

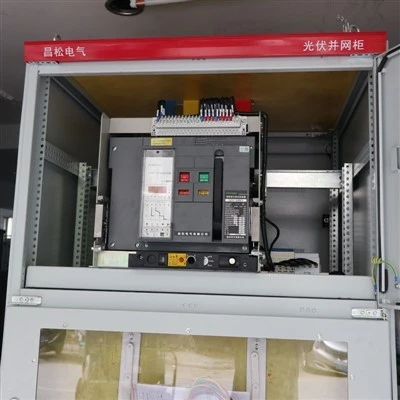

As a supplier of 63 amp MCCBs, I can offer you high - quality products that meet your specific requirements. Whether you're working on a Subminiature project or a Grid Connected Solar Cabinet, our MCCBs can provide reliable protection.
If you're interested in purchasing 63 amp MCCBs or have any questions about them, feel free to reach out. We'd be more than happy to have a chat with you and discuss your needs. Let's work together to ensure the safety and efficiency of your electrical systems!
