Hey there! As a supplier of 125 amp DC breakers, I often get asked if a 125 amp DC breaker is suitable for a DC lighting system. Well, let's dive right into it and figure this out together.
First off, we need to understand what a 125 amp DC breaker is all about. A DC breaker, as the name suggests, is designed to protect DC circuits. The "125 amp" part indicates the maximum current it can handle under normal operating conditions. When the current in the circuit exceeds this value, the breaker will trip, cutting off the power to prevent damage to the equipment and potential safety hazards like fires.
Now, let's talk about DC lighting systems. These systems can vary greatly in size and power requirements. Small - scale DC lighting setups, like those in a camper van or a small shed, might have relatively low power consumption. For instance, a few LED lights in a camper van might draw only a few amps in total. In such cases, a 125 amp DC breaker would be way overkill. It's like using a sledgehammer to crack a nut. You wouldn't need a breaker with such a high current rating because the normal operating current of the lighting system is far below the breaker's capacity.
On the other hand, large - scale DC lighting systems, such as those in industrial warehouses or large commercial buildings, can have a much higher power demand. If you have hundreds of high - intensity LED lights running simultaneously, the current draw can add up quickly. In these situations, a 125 amp DC breaker could potentially be suitable. But before making a decision, you need to calculate the total current draw of all the lights in the system.
To calculate the current draw of a DC lighting system, you can use the formula (I=\frac{P}{V}), where (I) is the current in amps, (P) is the total power of all the lights in watts, and (V) is the voltage of the DC system. For example, if you have a 24 - volt DC system and your lights have a total power of 2400 watts, then the current draw (I=\frac{2400}{24}=100) amps. In this case, a 125 amp DC breaker would be a good fit because the normal operating current is below the breaker's rating, but it still provides some headroom for any small fluctuations in current.
However, it's not just about the normal operating current. You also need to consider inrush currents. When you first turn on a DC lighting system, especially one with a lot of lights, there can be a brief surge of current. This inrush current can be significantly higher than the normal operating current. Some types of lights, like fluorescent or certain types of high - intensity discharge (HID) lights, have a particularly high inrush current. If the inrush current is too high and the breaker trips every time you turn on the lights, it can be a real hassle. So, you need to make sure that the 125 amp DC breaker can handle the inrush current without tripping.
Another factor to consider is the quality of the breaker. A high - quality 125 amp DC breaker will have better performance and reliability. It will be able to accurately detect over - current conditions and trip quickly when necessary. At our company, we take pride in providing top - notch 125 amp DC breakers that are designed to meet the highest standards.
Now, let's talk about some related products that might be useful in a DC lighting system. If you're looking for other circuit - protection options, you might be interested in the Mccb 250a 3p. This is a molded case circuit breaker with a higher current rating, which could be suitable for even larger DC systems or for use in combination with other breakers in a more complex electrical setup.
For power management and distribution, the Prefabricated Utility Module can be a great addition. It can help you organize and distribute power more efficiently in your DC lighting system, ensuring that each light gets the right amount of power.

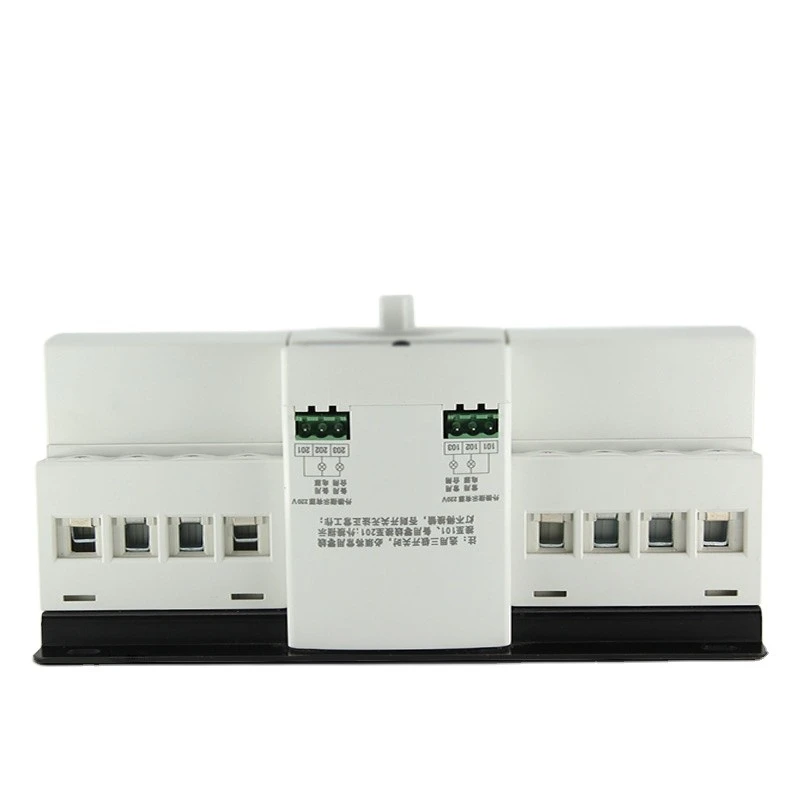

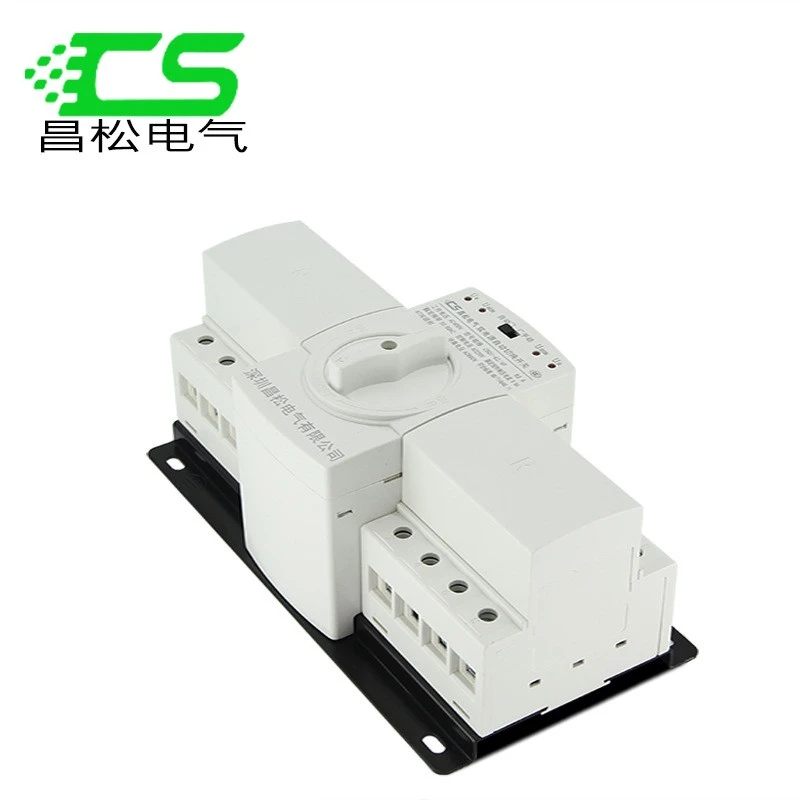

And if you need to switch between different power sources in your DC lighting system, the Double - throw Power Switch is a handy device. It allows you to easily switch between two power sources, which can be useful in case of a power outage or for testing different power configurations.
In conclusion, whether a 125 amp DC breaker is suitable for a DC lighting system depends on several factors. You need to consider the total current draw of the lighting system, including inrush currents, the quality of the breaker, and the specific requirements of your setup. If you're still not sure whether a 125 amp DC breaker is the right choice for your DC lighting system, don't hesitate to reach out to us. We're here to help you make the best decision for your electrical needs. Whether you're a small - scale DIY enthusiast or a large - scale industrial user, we can provide you with the expertise and products you need. So, if you're interested in purchasing 125 amp DC breakers or any of our other related products, let's start a conversation about your requirements. We're eager to work with you and ensure that your DC lighting system runs smoothly and safely.
References
- Electrical Engineering Handbook, Third Edition, edited by Richard C. Dorf
- National Electrical Code (NEC) standards for DC circuits and lighting systems
