Hey there! As a supplier of PV AC combiner boxes, I often get asked about how these nifty devices integrate with inverters. It's a crucial topic, especially for those in the solar energy game. So, let's dive right in and break it down.
First off, let's understand what a PV AC combiner box and an inverter are. A PV AC combiner box is like a traffic controller for the electrical current coming from multiple solar panels. It combines the AC outputs from these panels and sends them in a more organized way to the next stage of the system. On the other hand, an inverter is the magic box that converts the direct current (DC) produced by solar panels into alternating current (AC), which is what we use in our homes and businesses.
Now, the integration process between a PV AC combiner box and an inverter is all about making sure that the electrical signals flow smoothly and safely. The first step is to connect the output of the PV AC combiner box to the input of the inverter. This is usually done using appropriate cables that can handle the electrical load. It's super important to use the right cables because if they're too thin, they can overheat and cause problems.
One of the key things to consider during integration is the voltage and current ratings. The PV AC combiner box and the inverter need to be compatible in terms of these ratings. If the voltage or current from the combiner box is too high or too low for the inverter, it can lead to inefficiencies or even damage the inverter. So, before making any connections, it's essential to check the specifications of both devices.

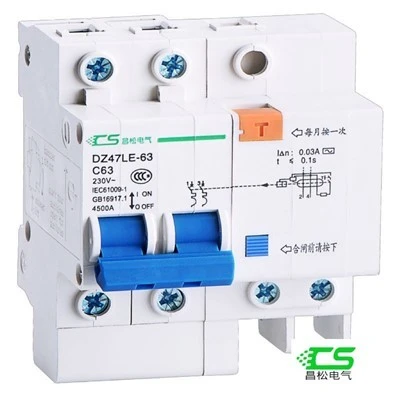

Another aspect of integration is protection. The PV AC combiner box often comes with built - in protection features like fuses and circuit breakers. These help to safeguard the system from overcurrent, short - circuits, and other electrical faults. For example, a 3 Phase Rcbo can be used in the combiner box to provide reliable protection against electrical issues. This type of circuit breaker can detect abnormal current conditions and quickly cut off the power to prevent damage.
The PV AC combiner box also needs to be properly grounded. Grounding is a safety measure that helps to protect the system and the people working on it from electrical shocks. When integrating with the inverter, the grounding of both devices should be coordinated to ensure a safe electrical environment.
Communication between the PV AC combiner box and the inverter is also crucial. Some modern systems use communication protocols to exchange information such as voltage, current, and temperature readings. This allows for better monitoring and control of the entire solar power system. For instance, if there's an issue with the current coming from the combiner box, the inverter can adjust its operation accordingly.
Let's talk about the physical installation. The PV AC combiner box and the inverter should be installed in a suitable location. They need to be protected from the elements, like rain, snow, and extreme temperatures. A Low Voltage Distribution Cabinet can be a great option for housing both the combiner box and the inverter. It provides a secure and organized environment for the electrical components.

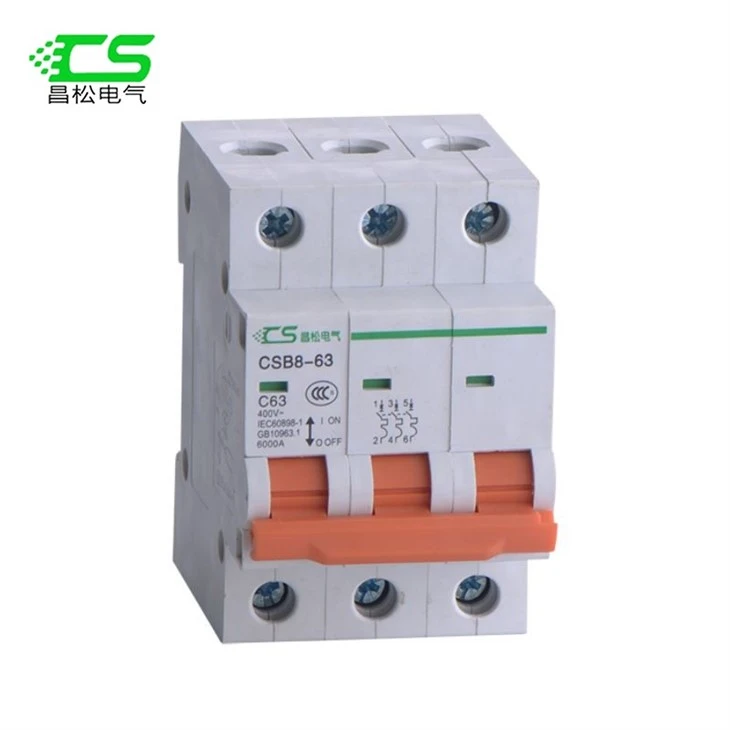

When it comes to maintenance, integrated systems require regular checks. The connections between the PV AC combiner box and the inverter should be inspected for any signs of wear or damage. Circuit breakers and fuses need to be tested to ensure they're functioning correctly. For example, a Dc Mcb 125a Circuit Breaker in the combiner box should be checked periodically to make sure it can trip when needed.
In terms of performance optimization, the integration of the PV AC combiner box and the inverter can have a big impact. By ensuring a smooth flow of electrical power, the overall efficiency of the solar power system can be improved. This means more electricity can be generated from the same amount of sunlight, which is great for both the environment and your wallet.
Now, if you're in the market for a high - quality PV AC combiner box, I'm here to help. Our products are designed to integrate seamlessly with a wide range of inverters. We've got years of experience in the industry, and we know how to make sure that your solar power system runs like a well - oiled machine. Whether you're a small - scale residential installer or a large - scale commercial developer, we've got the right solution for you.
If you're interested in learning more about our PV AC combiner boxes and how they can integrate with your inverters, don't hesitate to reach out. We can provide you with detailed product information, technical support, and pricing. Just drop us a message, and we'll get back to you as soon as possible. Let's work together to build a more sustainable and efficient solar power future.
