Hey there! As a supplier of MCCB 250A 3P, I often get asked if these devices can be used in sub - stations. Well, let's dive right into it and figure this out together.
First off, let's understand what an MCCB 250A 3P is. MCCB stands for Molded Case Circuit Breaker. The "250A" indicates its rated current capacity, meaning it can handle a maximum current of 250 amperes under normal operating conditions. The "3P" stands for three - pole, which is designed to protect three - phase electrical systems.
Sub - stations play a crucial role in the power distribution network. They receive high - voltage power from the transmission lines, step it down to a lower voltage, and then distribute it to end - users. In such a critical environment, the equipment used needs to be reliable, efficient, and able to handle the electrical loads safely.
One of the key factors to consider when determining if an MCCB 250A 3P can be used in a sub - station is the load requirements. Sub - stations deal with a wide range of electrical loads, from small local businesses to large industrial complexes. If the load in a particular section of the sub - station is within the 250A capacity of the MCCB, then it can potentially be used. For example, in a sub - station that supplies power to a small commercial area with a relatively low - power demand, the MCCB 250A 3P might be a suitable choice.
Another important aspect is the fault current. Sub - stations are prone to short - circuits and other electrical faults. The MCCB needs to be able to interrupt the circuit quickly and safely when a fault occurs. The breaking capacity of the MCCB is a critical parameter here. A high - quality MCCB 250A 3P should have a sufficient breaking capacity to handle the fault currents that are likely to occur in the sub - station. If the breaking capacity is too low, the MCCB may not be able to interrupt the circuit during a fault, which can lead to serious damage to the equipment and pose a safety hazard.
Environmental conditions in sub - stations also matter. Sub - stations can be located in various environments, from indoor, climate - controlled rooms to outdoor, exposed areas. The MCCB should be able to withstand the temperature, humidity, and other environmental factors. For instance, if the sub - station is in a hot and humid area, the MCCB should have proper insulation and heat - dissipation properties to ensure its reliable operation.
Now, let's talk about some of the applications where an MCCB 250A 3P can be used in a sub - station. It can be used for branch circuits within the sub - station. These branch circuits supply power to specific sections or equipment within the sub - station. For example, it can be used to protect the power supply to a Stainless Steel Distribution Box, which is often used to distribute power further within the sub - station.
It can also be used in the protection of some smaller transformers in the sub - station. If the transformer has a relatively low power rating and the current requirements are within the 250A limit of the MCCB, it can provide effective over - current and short - circuit protection.
However, there are also some limitations. In large - scale sub - stations that deal with high - power transmission and distribution, the MCCB 250A 3P may not be sufficient. These sub - stations often require circuit breakers with much higher current ratings and breaking capacities. For example, in a sub - station that supplies power to a large industrial plant, the electrical loads can be several thousand amperes, and a more powerful circuit breaker would be needed.

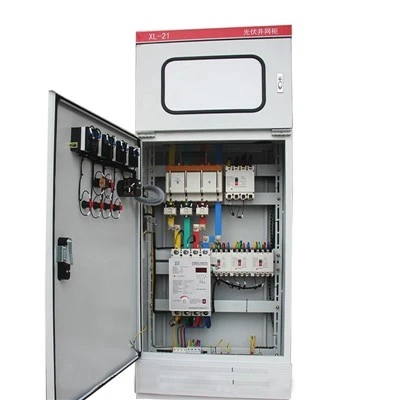

When considering using an MCCB 250A 3P in a sub - station, it's also important to look at the compatibility with other equipment. The MCCB should be able to work seamlessly with other components in the sub - station, such as Switchgear Distribution Cabinet and Pv Grid - Connected Cabinet. Compatibility issues can lead to improper operation and reduced reliability.
As a supplier of MCCB 250A 3P, I can assure you that our products are of high quality. We use advanced manufacturing techniques and high - grade materials to ensure that our MCCBs can meet the requirements of sub - stations. Our MCCBs are tested rigorously to ensure their performance and reliability.
If you're involved in the design, operation, or maintenance of sub - stations and are considering using an MCCB 250A 3P, I'd love to have a chat with you. We can discuss your specific requirements in detail and see if our products are the right fit for your sub - station. Whether it's load calculations, environmental considerations, or compatibility issues, we have the expertise to help you make an informed decision.
In conclusion, an MCCB 250A 3P can be used in sub - stations under certain conditions. It's important to carefully evaluate the load requirements, fault current, environmental conditions, and compatibility with other equipment. If you have any questions or need more information, don't hesitate to reach out. We're here to assist you in finding the best solution for your sub - station needs.
References
- Electrical Power Systems Design and Analysis textbooks
- Industry standards related to circuit breakers and sub - station equipment
